Today many people have a broadband Internet connection and surely don’t use the whole bandwidth all the time. So why don’t give others the opportunity to use your connection? With this document I want to describe how to set up a hotspot using an accesspoint running with OpenWrt. A very important aspect when you decide to open your wireless network to everyone often is that you still want to use it for your own purpose. This might be accessing a local file- or printserver or anything else not everybody in front of your house should be able to see and to use. Also your own connection should be encrypted. WEP-encryption is not only quite insecure but would also conflict with the idea of an open hotspot. So I decided to create a VPN using OpenVPN.

Attention with copy&paste!WordPress connects – – to one long —

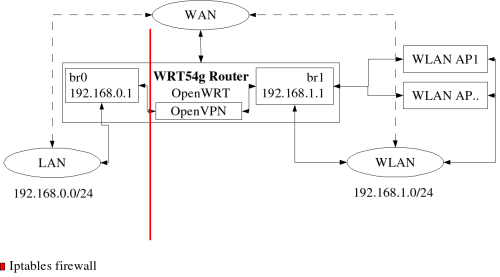

Network overview
The various access points have to be on different channels if they cover the same place.

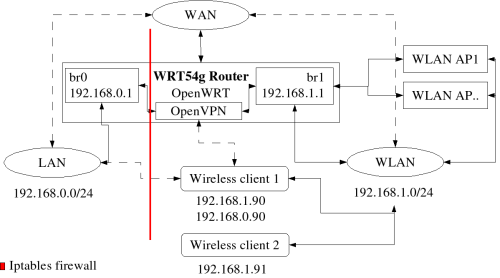

Network overview with clients

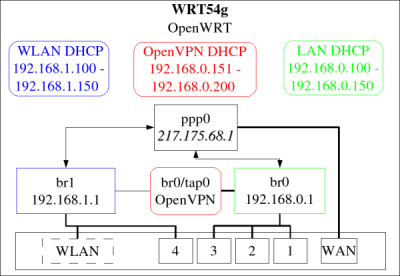

Inside the router

Be careful! The following is only tested for WRT54g V2.2. If you have another version check for differences in the naming of the devices!

Here comes the nvram settings for the router:


nvram set vlan0hwname=et0 #vlan0 = LANports
nvram set vlan1hwname=et0 #vlan1 = WANport
nvram set vlan2hwname=et0 #vlan2 = port bridged together with wifi

nvram set vlan0ports="1 2 5*" #ports for vlan0
nvram set vlan1ports="0 5" #ports for vlan1
nvram set vlan2ports="3 4 5" #ports for vlan2

nvram set wl0_ifname=eth1
nvram set wl0_mode=ap
nvram set wl0_channel=6
nvram set wl0_ssid="My Hotspot" #SSID for your wireless network

nvram set wifi_ifnames="eth1 vlan2" #bridge wifi together with the switch ports
nvram set wifi_ifname=br1
nvram set wifi_proto=static
nvram set wifi_ipaddr=192.168.1.1 #WLAN IP-address of your router
nvram set wifi_netmask=255.255.255.0 #WLAN netmask of your router

nvram set lan_ifnames=vlan0
nvram set lan_ifname=vlan0
nvram set lan_proto=static
nvram set lan_ipaddr=192.168.0.1 #LAN IP-address of your router
nvram set lan_netmask=255.255.255.0 #LAN netmask of your router

nvram set wan_device=vlan1
nvram set wan_ifname=ppp0
nvram set wan_proto=pppoe #using pppoe for internet connection

nvram set pppoe_username=user@provider.name #your pppoe username
nvram set pppoe_passwd=yourpassword #your pppoe password
nvram commit


/etc/dnsmasq.conf

domain-needed
bogus-priv
filterwin2k
localise-queries

# allow /etc/hosts and dhcp lookups via *.lan
local=/lan/
domain=lan
expand-hosts

# enable dhcp (start,end,netmask,leasetime)
dhcp-authoritative
dhcp-range=192.168.1.100,192.168.1.150,255.255.255.0,12h
dhcp-leasefile=/tmp/dhcp.leases

# use /etc/ethers for static hosts; same format as —dhcp-host
#
read-ethers
# other useful options:
# default route(s): dhcp-option=3,192.168.1.1,192.168.1.2
# dns server(s): dhcp-option=6,192.168.1.1,192.168.1.2
dhcp-option=3,192.168.1.1
dhcp-option=6,192.168.1.1

Configuring the OpenVPN-server is quite easy but you have to generate certificates and keys for each the server and the clients. The descrition of this procedure would exceed this document. You’ll find a detailed howto at http://openvpn.net/howto.html

/etc/openvpn/home-bridge/local.conf

dev tap0
ca ca.crt
cert server.crt
key server.key
dh dh1024.pem
server-bridge 192.168.0.1 255.255.255.0 192.168.0.151 192.168.0.200
ifconfig-pool-persist ipp.txt
keepalive 10 120
comp-lzo
persist-key
persist-tun
status status.log
verb 3
client-to-client

/etc/init.d/S51openvpn

#!/bin/sh
cd /etc/openvpn/home-bridge
br=“br0″
tap=“tap0″
eth=“vlan0″
eth_ip=“192.168.0.1″
eth_netmask=“255.255.255.0″
eth_broadcast=“192.168.0.255″
openvpn –mktun –dev $tap
brctl addbr $br
brctl addif $br $eth
brctl addif $br $tap
ifconfig $tap 0.0.0.0 promisc up
ifconfig $eth 0.0.0.0 promisc up
ifconfig $br $eth_ip netmask $eth_netmask broadcast $eth_broadcast

openvpn –daemon –config /etc/openvpn/home-bridge/local.conf

Assign executable rights for the startup script:
chmod a+x /etc/init.d/S60openvpn

/etc/init.d/S45firewall

[…]
iptables -A FORWARD -i br1 -o ppp0 -j ACCEPT
iptables -A FORWARD -i br0 -j ACCEPT

This has to be appended! The whole file is much longer.

Good luck!
